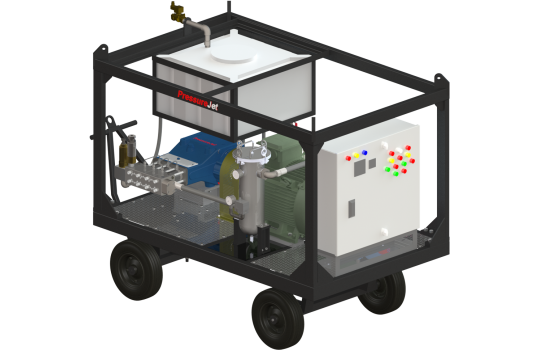

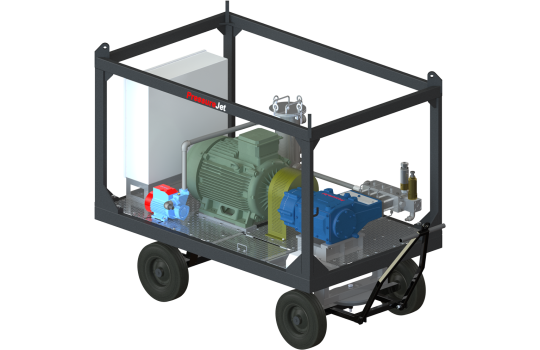

Hydro Blasting Machine - 1000 Bar to 1400 Bar - VC
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| VC 14 - 600 | 15 | 4 | 1400 | 20305 | 140 | 60 | 45 |
|
| 1300 | 18855 | 130 | 50 | 37 |
|
|||
| VC 16 - 600 | 22 | 5.9 | 1130 | 16389 | 113 | 60 | 45 |
|
Note: Required diesel engine HP will be 20% more than motor HP.
-
Driver TypeElectric Motor Driven, Diesel Engine Driven, PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialStainless Steel
-
Inlet Connection2” BSPF
-
Outlet Connection3/4” BSPF
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
-
Bare Pump Weight197 Kg.
-
Bare Pump Size814 X 602 X 264 mm
-
Oil Capacity8 Ltr.
-
Oil GradeGear Oil 220
T 70 Pressure Regulating Valve
- Provides superior pressure control for extra heavy-duty pump operations
- Rugged T-70 PRV construction ensures durability in extreme conditions.
DG-20 Dump Gun
- DG-20 Dump Gun with full SS body engineered for ultra-high pressure operations.
- Suitable for applications up to 1000 bar with assured durability and safety.
Safety Suit
- Heavy-duty safety suit designed for operators working with ultra-high pressure water jetting
- Made from multi-layer ballistic fabric for cut, puncture and water-jet resistance.
Rupture Disk
- Rupture disk provides instant pressure relief to protect pumps and operators from overpressure.
- Designed for precise burst pressure ratings to safeguard ultra-high pressure systems.
High Pressure Discharge Hose
- High-pressure discharge hose rated up to 1400 BAR
- Constructed with multi-wire steel braid reinforcement for superior strength and flexibility.
MEG Nozzle
- Flat jet high-pressure nozzle for uniform impact and consistent surface cleaning.
- Rated for pressures up to 700 BAR for hydro jetting and descaling systems.
Attack Tip
- High-impact attack tip nozzle for concentrated surface cleaning and coating removal.
- Operates at extreme pressures up to 1400 BAR for hydro blasting and industrial maintenance.
