Tank and Reactor Cleaning System - 1000 Bar to 1400 Bar - EAC

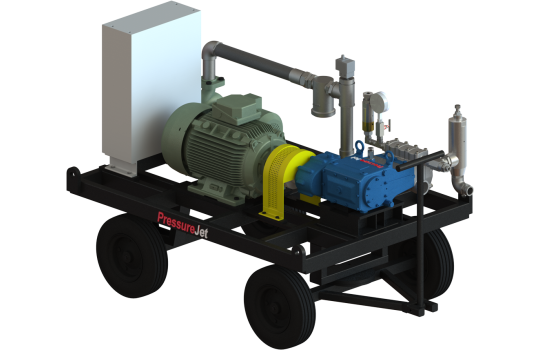

Tank Cleaning System | EAA Series Trolley Mounted Custom System | PressureJet

Tank Cleaning System | EAA Series Trolley Mounted Custom System | PressureJet

Performance Curve

Catalogue

Model Selection Chart

MODEL-SPM	FLOW RATE		PRESSURE			MOTOR POWER		SELECT
MODEL-SPM	l/min	Gpm	bar	psi	Mpa	hp	KW	SELECT
EAC 12 - 690	8	2.1	1400	20305	140	40	30
			1220	17695	122	30	22
			1020	14794	102	25	19
EAC 12 - 825	10	2.7	1400	20305	140	40	30
EAC 12 - 825	10	2.7	1025	14866	103	30	22
EAC 12 - 985	12	3.2	1150	16679	115	40	30

Note: Required diesel engine HP will be 20% more than motor HP.

Specification

Driver Type
Electric Motor Driven, Diesel Engine Driven,PTO driven
Power Supply
3 Phase

Liquid End Material
Stainless Steel
Inlet Connection
2" BSPF

Outlet Connection
1” BSPF
Inlet Pressure
Flooded to 2 Bar

Working Fluid Temp.
60 °C
Bare Pump Weight
110 Kg.

Bare Pump Size
615 X 513 X 200 mm
Oil Capacity
5 Ltr.

Oil Grade
Gear Oil 220

Accessories

T 40 Pressure Regulating Valve | PressureJet

T 40 Pressure Regulating Valve

Ensures accurate pressure regulation in heavy-duty high-pressure pump systems.
Robust T-40 PRV design built for extreme industrial performance.

Rupture Disk | PressureJet

Rupture Disk

Rupture disk provides instant pressure relief to protect pumps and operators from overpressure.
Designed for precise burst pressure ratings to safeguard ultra-high pressure systems.

Torus 3D Tank & Vessel Nozzle | PressureJet

Torus 3D Tank & Vessel Nozzle

Head rotation provides complete internal coverage while speed control delivers optimum jet dwell time
Easily re-jet the Gopher for more pulling force or forward hitting power depending on the needs of the job

A80LU Tank Cleaning Nozzle | PressureJet

A80LU Tank Cleaning Nozzle

Self-propelled rotary tank cleaner providing full 360° cleaning coverage.
Built from acid-resistant stainless steel suitable for HF and HNO? cleaning.
