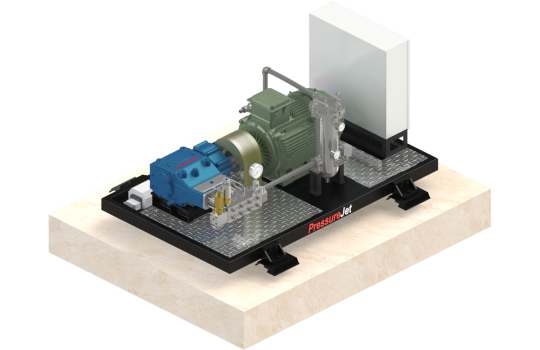

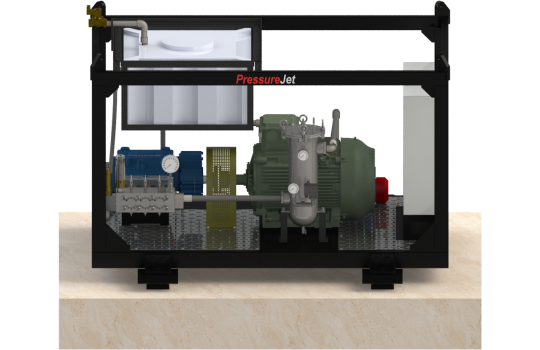

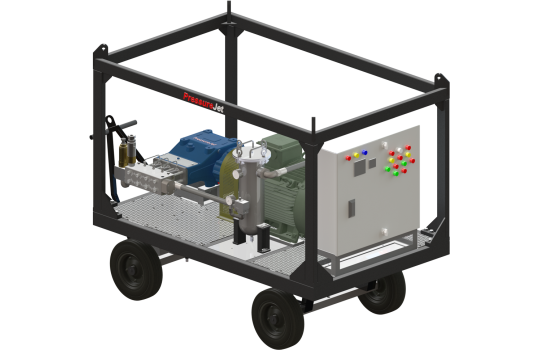

Tank and Reactor Cleaning System - 1000 Bar to 1400 Bar - VC
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| VC 14 - 600 | 15 | 4 | 1400 | 20305 | 140 | 60 | 45 |
|
| 1300 | 18855 | 130 | 50 | 37 |
|
|||
| VC 16 - 600 | 22 | 5.9 | 1130 | 16389 | 113 | 60 | 45 |
|
Note: Required diesel engine HP will be 20% more than motor HP.
-
Driver TypeElectric Motor Driven, Diesel Engine Driven, PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialStainless Steel
-
Inlet Connection2” BSPF
-
Outlet Connection3/4” BSPF
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
-
Bare Pump Weight197 Kg.
-
Bare Pump Size814 X 602 X 264 mm
-
Oil Capacity8 Ltr.
-
Oil GradeGear Oil 220
T 70 Pressure Regulating Valve
- Provides superior pressure control for extra heavy-duty pump operations
- Rugged T-70 PRV construction ensures durability in extreme conditions.
Rupture Disk
- Rupture disk provides instant pressure relief to protect pumps and operators from overpressure.
- Designed for precise burst pressure ratings to safeguard ultra-high pressure systems.
Torus 3D Tank & Vessel Nozzle
- Head rotation provides complete internal coverage while speed control delivers optimum jet dwell time
- Easily re-jet the Gopher for more pulling force or forward hitting power depending on the needs of the job
A80LU Tank Cleaning Nozzle
- Self-propelled rotary tank cleaner providing full 360° cleaning coverage.
- Built from acid-resistant stainless steel suitable for HF and HNO? cleaning.
