ACC Fin Tube Cleaning Pump - 100 Bar to 200 Bar - VA

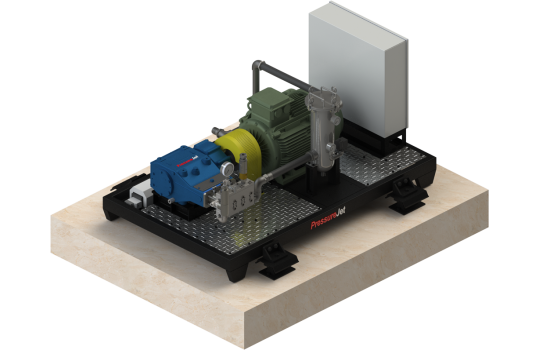

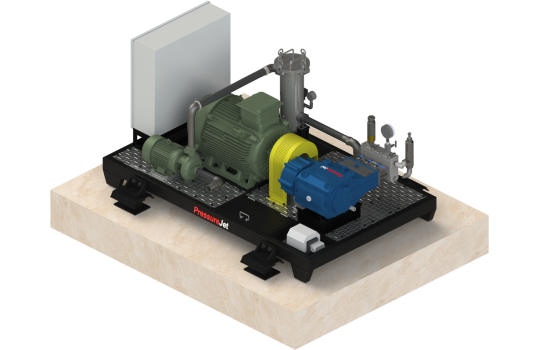

ACC Fin Tube Cleaning | VB Series Skid Mounted Custom System | PressureJet

ACC Fin Tube Cleaning | VB Series Skid Mounted Custom System | PressureJet

Catalogue

Model Selection Chart

MODEL-SPM	FLOW RATE		PRESSURE			MOTOR POWER		SELECT
MODEL-SPM	l/min	Gpm	bar	psi	Mpa	hp	KW	SELECT
VA 36 - 500	87	23.2	205	2973	21	50	37
VA 36 - 500	87	23.2	175	2538	18	40	30
VA 36 - 600	104	27.7	205	2973	21	60	45
VA 36 - 600	104	27.7	180	2611	18	50	37
VA 36 - 800	140	37.3	170	2466	17	60	45
VA 40 - 500	107	28.5	165	2393	17	50	37
VA 40 - 600	130	34.7	165	2393	17	60	45

Note: Required diesel engine HP will be 20% more than motor HP.

Specification

Driver Type
Electric Motor Driven, Diesel Engine Driven, PTO driven
Power Supply
3 Phase

Liquid End Material
Stainless Steel
Inlet Connection
3” BSPF

Outlet Connection
1” BSPF
Inlet Pressure
Flooded to 2 Bar

Working Fluid Temp.
60 °C
Bare Pump Weight
197 Kg.

Bare Pump Size
721 X 625 X 274 mm
Oil Capacity
8 Ltr.

Oil Grade
Gear Oil 220

Accessories

S-20 Safety Valve | PressureJet

S-20 Safety Valve

Ensures maximum safety by releasing excess pressure automatically.
Compact S-20 Safety Valve built for reliability and long life.

T 60 Pressure Regulating Valve | PressureJet

T 60 Pressure Regulating Valve

Delivers precise pressure regulation for large high-flow pump systems
Heavy-duty T-60 PRV designed for maximum industrial performance.

RL-84 Gun Catalogue| PressureJet

RL-84 Gun

RL-84 Spray Gun designed for medium-to-high pressure cleaning with maximum safety.
Equipped with Sst seat and ball ensuring precise sealing and long service life.

Dump Gun | PressureJet

DG-20 Dump Gun

DG-20 Dump Gun with full SS body engineered for ultra-high pressure operations.
Suitable for applications up to 1000 bar with assured durability and safety.

Rigid Lance | PressureJet

Rigid Lance

High-strength rigid lance ensures straight and powerful jet delivery for efficient cleaning.
Constructed from stainless steel or alloy material ensuring corrosion resistance and long service life.

High Pressure Discharge Hose | PressureJet

High Pressure Discharge Hose

High-pressure discharge hose rated up to 1400 BAR
Constructed with multi-wire steel braid reinforcement for superior strength and flexibility.
