ACC Fin Tube Cleaning Pump - 40 Bar to 200 Bar - EAA

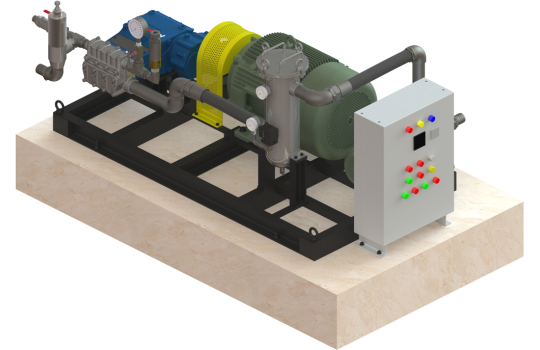

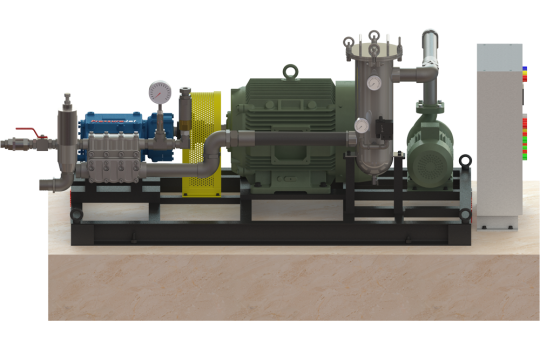

ACC Fin Tube Cleaning System | EAA Series Skid Mounted Custom System | PressureJet

ACC Fin Tube Cleaning System | EAA Series | PressureJet

Performance Curve

Catalogue

Model Selection Chart

MODEL-SPM	FLOW RATE		PRESSURE			MOTOR POWER		SELECT
MODEL-SPM	l/min	Gpm	bar	psi	Mpa	hp	KW	SELECT
EAA 30 - 825	70	18.7	200	2901	20	40	30
EAA 30 - 825	70	18.7	165	2393	17	30	22
EAA 30 - 985	84	22.4	185	2683	19	40	30
EAA 32 - 985	95	25.3	160	2321	16	40	30
EAA 32 - 1000	100	26.7	160	2321	16	40	30

Note: Required diesel engine HP will be 20% more than motor HP.

Specification

Driver Type
Electric Motor Driven, Diesel Engine Driven,PTO driven
Power Supply
3 Phase

Liquid End Material
Stainless Steel
Inlet Connection
2" BSPF

Outlet Connection
1” BSPF
Inlet Pressure
Flooded to 2 Bar

Working Fluid Temp.
60 °C
Bare Pump Weight
110 Kg.

Bare Pump Size
542 X 512 X 200 mm
Oil Capacity
5 Ltr.

Oil Grade
Gear Oil 220

Accessories

S-20 Safety Valve | PressureJet

S-20 Safety Valve

Ensures maximum safety by releasing excess pressure automatically.
Compact S-20 Safety Valve built for reliability and long life.

T 60 Pressure Regulating Valve | PressureJet

T 60 Pressure Regulating Valve

Delivers precise pressure regulation for large high-flow pump systems
Heavy-duty T-60 PRV designed for maximum industrial performance.

RL-84 Gun Catalogue| PressureJet

RL-84 Gun

RL-84 Spray Gun designed for medium-to-high pressure cleaning with maximum safety.
Equipped with Sst seat and ball ensuring precise sealing and long service life.

Rigid Lance | PressureJet

Rigid Lance

High-strength rigid lance ensures straight and powerful jet delivery for efficient cleaning.
Constructed from stainless steel or alloy material ensuring corrosion resistance and long service life.

High Pressure Discharge Hose | PressureJet

High Pressure Discharge Hose

High-pressure discharge hose rated up to 1400 BAR
Constructed with multi-wire steel braid reinforcement for superior strength and flexibility.
