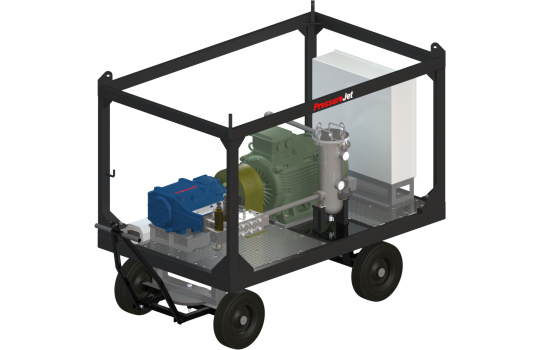

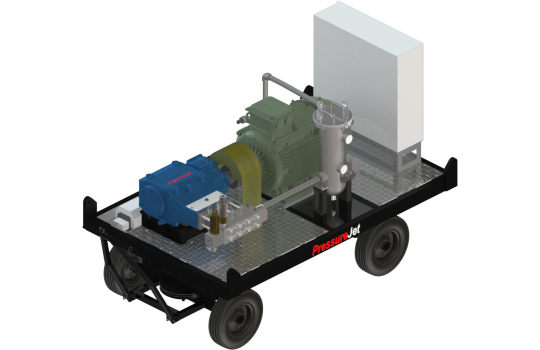

Hydro Jetting Machine - 1000 Bar to 1400 Bar - VC
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| VC 14 - 600 | 15 | 4 | 1400 | 20305 | 140 | 60 | 45 |
|
| 1300 | 18855 | 130 | 50 | 37 |
|
|||
| VC 16 - 600 | 22 | 5.9 | 1130 | 16389 | 113 | 60 | 45 |
|
Note: Required diesel engine HP will be 20% more than motor HP.
-
Driver TypeElectric Motor Driven, Diesel Engine Driven, PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialStainless Steel
-
Inlet Connection2” BSPF
-
Outlet Connection3/4” BSPF
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
-
Bare Pump Weight197 Kg.
-
Bare Pump Size814 X 602 X 264 mm
-
Oil Capacity8 Ltr.
-
Oil GradeGear Oil 220
Foot Operated Valve 30
- Ensures precise pressure cut-off for maximum pump safety.
- Heavy-duty FOV-30 Safety Valve designed for high-pressure systems.
T 70 Pressure Regulating Valve
- Provides superior pressure control for extra heavy-duty pump operations
- Rugged T-70 PRV construction ensures durability in extreme conditions.
Safety Suit
- Heavy-duty safety suit designed for operators working with ultra-high pressure water jetting
- Made from multi-layer ballistic fabric for cut, puncture and water-jet resistance.
Flexible Lance Safety Stop
- Flexible Lance Safety Stop prevents hose whip accidents during high-pressure water jetting.
- Designed for operator safety when using flexible lances in heat exchanger and pipe cleaning.
Flexible Lance
- Flexible high-pressure lance designed for efficient cleaning of curved and long heat exchanger tubes.
- Rated for 1400 BAR working pressure with reinforced dual-braided steel for maximum durability.
BJV Nozzle
- Interchangeable heads allow the tool to be used with any type of pump
- Multiple head options to allow for flush mounted nozzles, extension arms, plugs and pulling rings
Raptor Nozzle
- High flow range aids in removing thick, tough deposits
- Controlled rotation for longer jet dwell times help remove hard material
6 inch Badger Nozzle
- Different jetting configurations allow for more or less pull and forward hitting power
- Speed controlled rotary tools provide complete internal cleaning coverage and optimum jet delivery
4 inch Badger Nozzle
- 5X longer runtime between maintenance intervals
- Redesigned braking system maintains consistent speed over longer duration
2 inch Badger Nozzle
- Navigates pipes with bends as small as 2 inches (51 mm) in diameter
- Drilled heads improve reliability while delivering the same power and life
Gopher Nozzle
- Head rotation provides complete internal coverage while speed control delivers optimum jet dwell time
- Easily re-jet the Gopher for more pulling force or forward hitting power depending on the needs of the job
