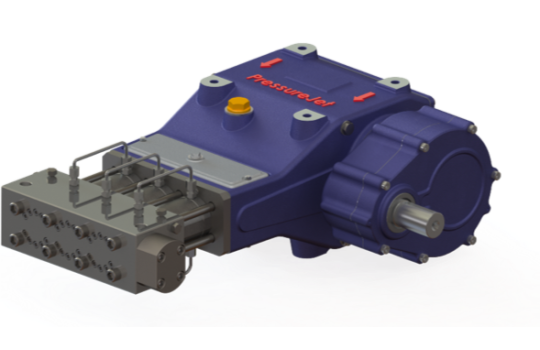

High Pressure Plunger Pumps - VC Series
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| VC 14 - 600 | 15 | 4 | 1400 | 20305 | 140 | 60 | 45 |
|
| 1300 | 18855 | 130 | 50 | 37 |
|
|||
| VC 16 - 600 | 22 | 5.9 | 1130 | 16389 | 113 | 60 | 45 |
|
Note: Required diesel engine HP will be 20% more than motor HP.
-
Driver TypeElectric Motor Driven, Diesel Engine Driven, PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialStainless Steel
-
Inlet Connection2” BSPF
-
Outlet Connection3/4” BSPF
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
-
Bare Pump Weight197 Kg.
-
Bare Pump Size814 X 602 X 264 mm
-
Oil Capacity8 Ltr.
-
Oil GradeGear Oil 220
T 70 Pressure Regulating Valve
- Provides superior pressure control for extra heavy-duty pump operations
- Rugged T-70 PRV construction ensures durability in extreme conditions.
Rupture Disk
- Rupture disk provides instant pressure relief to protect pumps and operators from overpressure.
- Designed for precise burst pressure ratings to safeguard ultra-high pressure systems.
Needle Valve
- Precision flow control valve designed for accurate pressure and flow regulation up to 1400 BAR.
- Tapered stem design provides smooth throttling and leak-free shutoff under high pressure.
Pressure Gauge
- High-accuracy pressure gauge for continuous monitoring up to 1500 BAR.
- Built with stainless steel casing and glycerin-filled design to resist vibration and corrosion.
