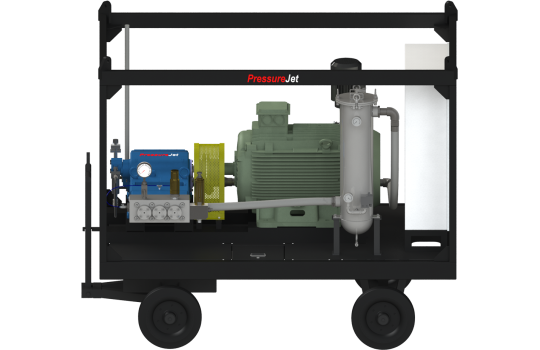

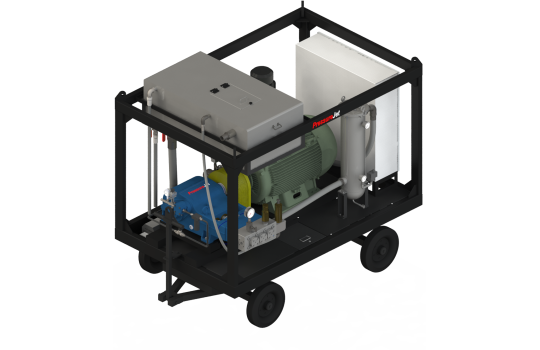

Hydro Jetting Machine - 1000 Bar to 1400 Bar - KDD
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| KDD 20 75 - 435 | 30 | 8 | 1400 | 20305 | 140 | 100 | 75 |
|
| KDD 20 95 - 500 | 50 | 13.3 | 1100 | 15954 | 110 | 120 | 89 |
|
| KDD 22 75 - 435 | 40 | 10.7 | 1100 | 15954 | 110 | 100 | 75 |
|
| KDD 22 95 - 500 | 60 | 16 | 1100 | 15954 | 110 | 150 | 112 |
|
Note: Required diesel engine HP will be 20% more than motor HP.
-
Drier TypeElectric Motor Driven, Diesel Engine Driven, PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialStainless Steel
-
Inlet Connection1-1/2” BSPF
-
Outlet Connection1/2” BSPF
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
-
Bare Pump Weight410 Kg.
-
Bare Pump Size1170 X 633 X 496 mm
-
Oil Capacity8 Ltr.
-
Oil GradeGear Oil 220
Foot Operated Valve 30
- Ensures precise pressure cut-off for maximum pump safety.
- Heavy-duty FOV-30 Safety Valve designed for high-pressure systems.
T 70 Pressure Regulating Valve
- Provides superior pressure control for extra heavy-duty pump operations
- Rugged T-70 PRV construction ensures durability in extreme conditions.
Safety Suit
- Heavy-duty safety suit designed for operators working with ultra-high pressure water jetting
- Made from multi-layer ballistic fabric for cut, puncture and water-jet resistance.
Flexible Lance Safety Stop
- Flexible Lance Safety Stop prevents hose whip accidents during high-pressure water jetting.
- Designed for operator safety when using flexible lances in heat exchanger and pipe cleaning.
Flow Divider Valve
- High-pressure flow divider valve for hydro jetting, blasting, and cleaning after pickling operations.
- Provides equal flow distribution to multiple guns, lances, or rotary nozzles from one pump line.
Flexible Lance
- Flexible high-pressure lance designed for efficient cleaning of curved and long heat exchanger tubes.
- Rated for 1400 BAR working pressure with reinforced dual-braided steel for maximum durability.
BJV Nozzle
- Interchangeable heads allow the tool to be used with any type of pump
- Multiple head options to allow for flush mounted nozzles, extension arms, plugs and pulling rings
Raptor Nozzle
- High flow range aids in removing thick, tough deposits
- Controlled rotation for longer jet dwell times help remove hard material
6 inch Badger Nozzle
- Different jetting configurations allow for more or less pull and forward hitting power
- Speed controlled rotary tools provide complete internal cleaning coverage and optimum jet delivery
4 inch Badger Nozzle
- 5X longer runtime between maintenance intervals
- Redesigned braking system maintains consistent speed over longer duration
2 inch Badger Nozzle
- Navigates pipes with bends as small as 2 inches (51 mm) in diameter
- Drilled heads improve reliability while delivering the same power and life
Banshee Nozzle
- Ideal for unplugging, cleaning and polishing tubes, such as those found in heat exchangers and industrial tube bundles
- Stainless steel construction for extreme durability and longevity
Gopher Nozzle
- Head rotation provides complete internal coverage while speed control delivers optimum jet dwell time
- Easily re-jet the Gopher for more pulling force or forward hitting power depending on the needs of the job
TNS Nozzle
- Pressurejet Tube cleaning nozzles can be used with flexible lance or Rigid Lance.
- Nozzles made from hardened stainless steel.
