High Pressure Hydro Test Pump and System - 1000 Bar to 1400 Bar - KDD

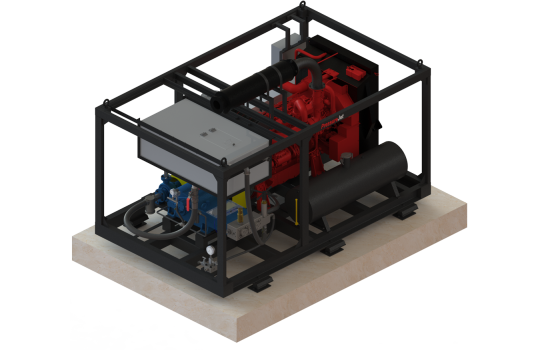

High Pressure Hydro Testing Machine | KDD Series Diesel Engine Driven Custom System | PressureJet

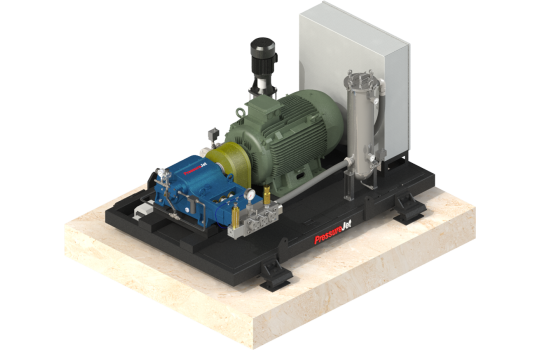

High Pressure Plunger Pump for Hydro Test | KDD Series Skid Mounted Custom System | PressureJet

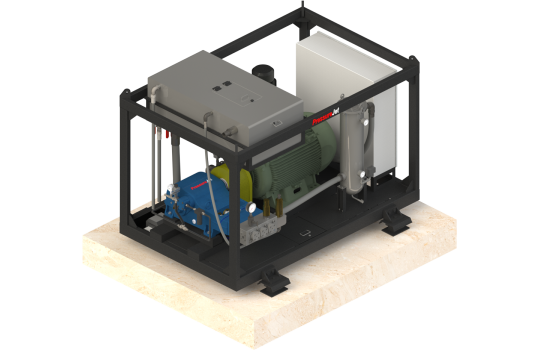

Hydro Testing Machine | KDD Series Skid Mounted with Tank Custom System | PressureJet

Performance Curve

Catalogue

Model Selection Chart

MODEL-SPM	FLOW RATE		PRESSURE			MOTOR POWER		SELECT
MODEL-SPM	l/min	Gpm	bar	psi	Mpa	hp	KW	SELECT
KDD 20 75 - 435	30	8	1400	20305	140	100	75
KDD 20 95 - 500	50	13.3	1400	20305	140	150	112
KDD 20 95 - 500	50	13.3	1100	15954	110	120	89
KDD 22 75 - 435	40	10.7	1100	15954	110	100	75
KDD 22 95 - 500	60	16	1100	15954	110	150	112

Note: Required diesel engine HP will be 20% more than motor HP.

Specification

Drier Type
Electric Motor Driven, Diesel Engine Driven, PTO driven
Power Supply
3 Phase

Liquid End Material
Stainless Steel
Inlet Connection
1-1/2” BSPF

Outlet Connection
1/2” BSPF
Inlet Pressure
Flooded to 2 Bar

Working Fluid Temp.
60 °C
Bare Pump Weight
410 Kg.

Bare Pump Size
1170 X 633 X 496 mm
Oil Capacity
8 Ltr.

Oil Grade
Gear Oil 220

Accessories

T 70 Pressure Regulating Valve | PressureJet

T 70 Pressure Regulating Valve

Provides superior pressure control for extra heavy-duty pump operations
Rugged T-70 PRV construction ensures durability in extreme conditions.

Rupture Disk | PressureJet

Rupture Disk

Rupture disk provides instant pressure relief to protect pumps and operators from overpressure.
Designed for precise burst pressure ratings to safeguard ultra-high pressure systems.

Ball Valve | PressureJet

Ball Valve

Full-bore high-pressure ball valve ensures smooth, unrestricted flow with minimal pressure loss.
Handles pressures up to 1400 BAR with precision-sealed ball and seat mechanism.

High Pressure Discharge Hose | PressureJet

High Pressure Discharge Hose

High-pressure discharge hose rated up to 1400 BAR
Constructed with multi-wire steel braid reinforcement for superior strength and flexibility.

Basket Type Filter 4 inch | PressureJet

Basket Filter

High-accuracy pressure gauge for continuous monitoring up to 1500 BAR.
Built with stainless steel casing and glycerin-filled design to resist vibration and corrosion.
