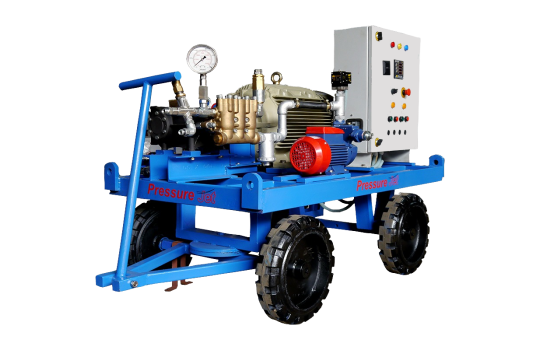

Yes. The PressureJet HW Series is an industrial high pressure cleaner range covering 40 to 500 bar (7,252 psi). Three 50 Hz models are rated at 500 bar: the MPX 3015 IR (30 l/min, 40 hp / 30 kW motor), the PX 1550 IR (15 l/min, 20 hp / 15 kW) and the PX 2150 IR (21 l/min, 30 hp / 22 kW).
Industrial High Pressure Cleaner - 40 Bar to 500 Bar - HW
| MODEL-SPM | FLOW RATE | PRESSURE | MOTOR POWER | SELECT | ||||
|---|---|---|---|---|---|---|---|---|
| l/min | Gpm | bar | psi | Mpa | hp | KW | ||
| MPX 3015 IR | 30 | 8 | 500 | 7252 | 50 | 40 | 30 |
|
| 380 | 5511 | 38 | 30 | 22 |
|
|||
| PX 1550 IR | 15 | 4 | 500 | 7252 | 50 | 20 | 15 |
|
| PX 1735 IR | 17 | 4.5 | 350 | 5076 | 35 | 15 | 11 |
|
| PX 2150 IR | 21 | 5.6 | 500 | 7252 | 50 | 30 | 22 |
|
| 380 | 5511 | 38 | 20 | 15 |
|
|||
Note: Required diesel engine HP will be 20% more than motor HP.
-
Driver TypeElectric Motor Driven, Diesel Engine Driven,PTO driven
-
Power Supply3 Phase
-
Liquid End MaterialBrass
-
Inlet PressureFlooded to 2 Bar
-
Working Fluid Temp.60 °C
RL-84 Gun
- RL-84 Spray Gun designed for medium-to-high pressure cleaning with maximum safety.
- Equipped with Sst seat and ball ensuring precise sealing and long service life.
Rigid Lance
- High-strength rigid lance ensures straight and powerful jet delivery for efficient cleaning.
- Constructed from stainless steel or alloy material ensuring corrosion resistance and long service life.
VB 85 Unloader Valve
- Designed for pressures up to 280 BAR with flow capacity up to 80 LPM.
- Optimized internal passages that guarantee reduced pressure loss.
High Pressure Discharge Hose
- High-pressure discharge hose rated up to 1400 BAR
- Constructed with multi-wire steel braid reinforcement for superior strength and flexibility.
UR 60 Nozzle
- Rated for 600 BAR for heavy-duty cleaning.
- Built entirely from stainless steel for extreme corrosion and wear resistance.
UR 50 Nozzle
- Handles up to 500 BAR for efficient, uniform cleaning.
- Built entirely from stainless steel for extreme corrosion and wear resistance.
Frequently Asked Questions

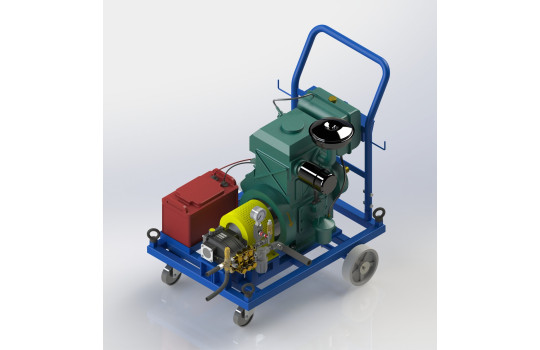

Yes, diesel is available. PressureJet HW Series cleaners can be electric motor driven, diesel engine driven, or PTO driven. For diesel, the engine should be rated about 20% higher than the listed motor horsepower. For example, a 30 hp motor model needs roughly a 36 hp diesel engine.
Yes, for the electric versions. The specification lists a 3-phase power supply for the HW Series. The motor ratings run from 11 kW (15 hp) on the PX 1735 IR up to 30 kW (40 hp) on the MPX 3015 IR. If you only have single-phase power, a diesel engine or PTO drive is the alternative.
Yes, within a limit. The HW Series is rated for a working fluid temperature of up to 60 °C. Its liquid end is brass, and the inlet must be flooded to a maximum of 2 bar. Water above 60 °C is outside the stated specification.
Not all of them. The UR 50 nozzle (500 bar), UR 60 nozzle (600 bar) and the high pressure discharge hose (up to 1,400 bar) are rated at or above 500 bar. The VB 85 unloader valve is rated only up to 280 bar, so it suits the lower-pressure HW models, not the 500 bar ones. Confirm the unloader for your model with PressureJet Systems Pvt. Ltd. (sales@pressurejet.com, +91-9375022359).
