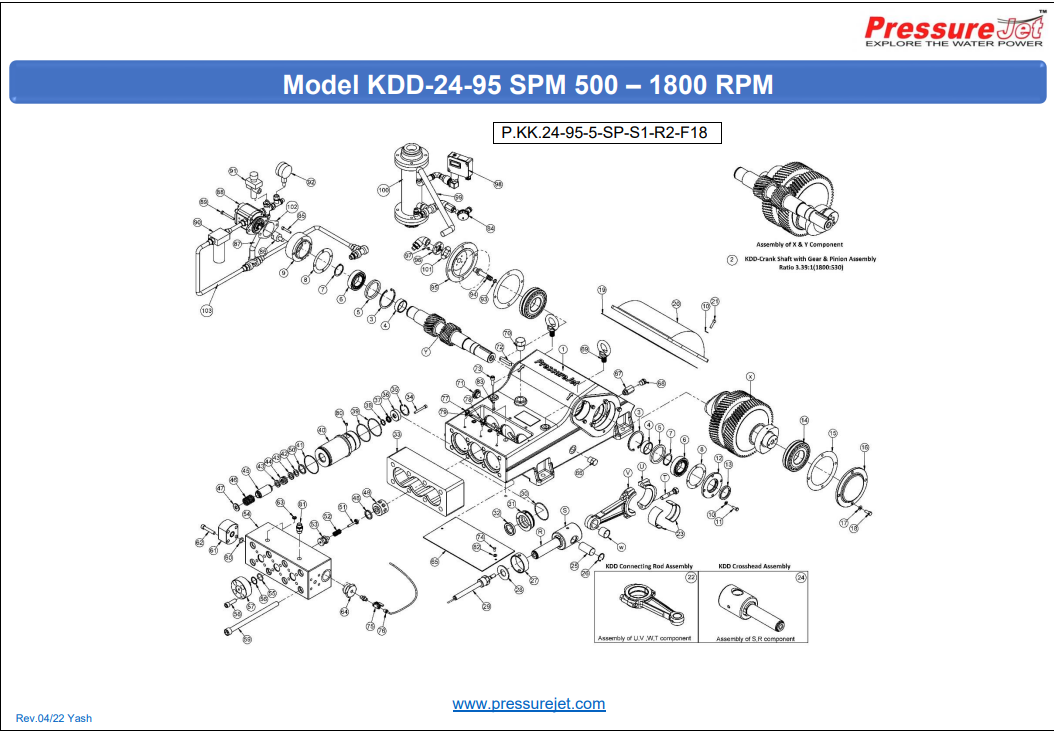

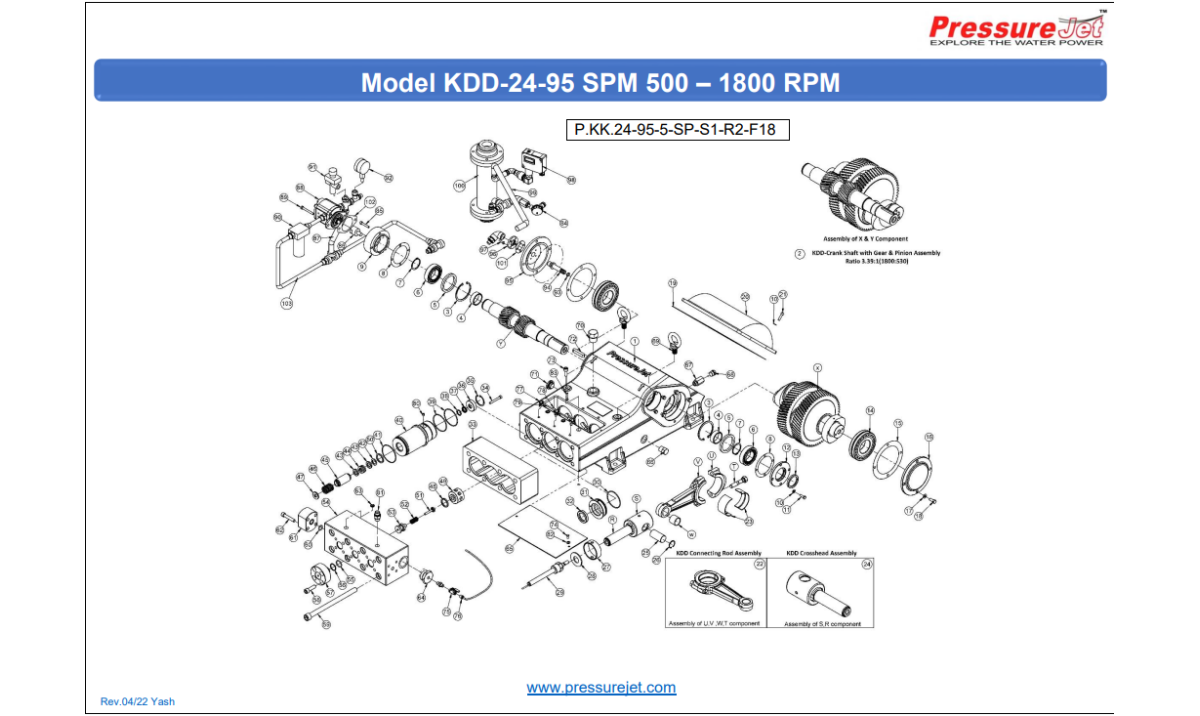

KDD 24 - 95 Exploded View and Spares List

Severity: Notice

Message: Undefined variable: className

Filename: models/Front_common.php

Line Number: 197

Backtrace:

File: /home/abhishah/public_html/application/models/Front_common.php
Line: 197
Function: _error_handler

File: /home/abhishah/public_html/application/views/front/header.php
Line: 93
Function: getbrowserData

File: /home/abhishah/public_html/application/core/MY_Loader.php
Line: 14
Function: view

File: /home/abhishah/public_html/application/controllers/front/Parts.php
Line: 57
Function: template

File: /home/abhishah/public_html/index.php
Line: 275
Function: require_once

KDD 24 - 95

Photo	S.N	Item Code	Item Description	MOQ
-	1	O.RK.KK-PSA-24	KDD-Plunger Seal Aramide-24mm Kit	1
-	2	O.RK.KK-CV	KDD-Complete Valve Kit	1
-	3	O.RK.KK-OR	KDD O-Ring Kit	1
-	4	O.RK.KK-SR-24	KDD-Support Ring-24mm Kit	1
-	5	O.RK.KB-OS-N	KB & KD -Oil seal kit	1
-	6	O.RK.KK-WMK	KDD White metal kit (3 set in 1 kit) (std.)	1
-	7	O.RK.KK-LPC-24	KDD-Low pressure cover kit - 24 mm	1
-	8	O.RK.KK-PECK	KDD Power end circlip kit	1
-	9	O.RK.KK-GK	KDD gasket kit	1
-	10	O.RK.KK-PEFK	KDD Power end fasteners kit	1
-	11	O.RK.KK-LEFK	KDD Liquid end fasteners kit	1
